Automated electronic water walve production equipment assembly system

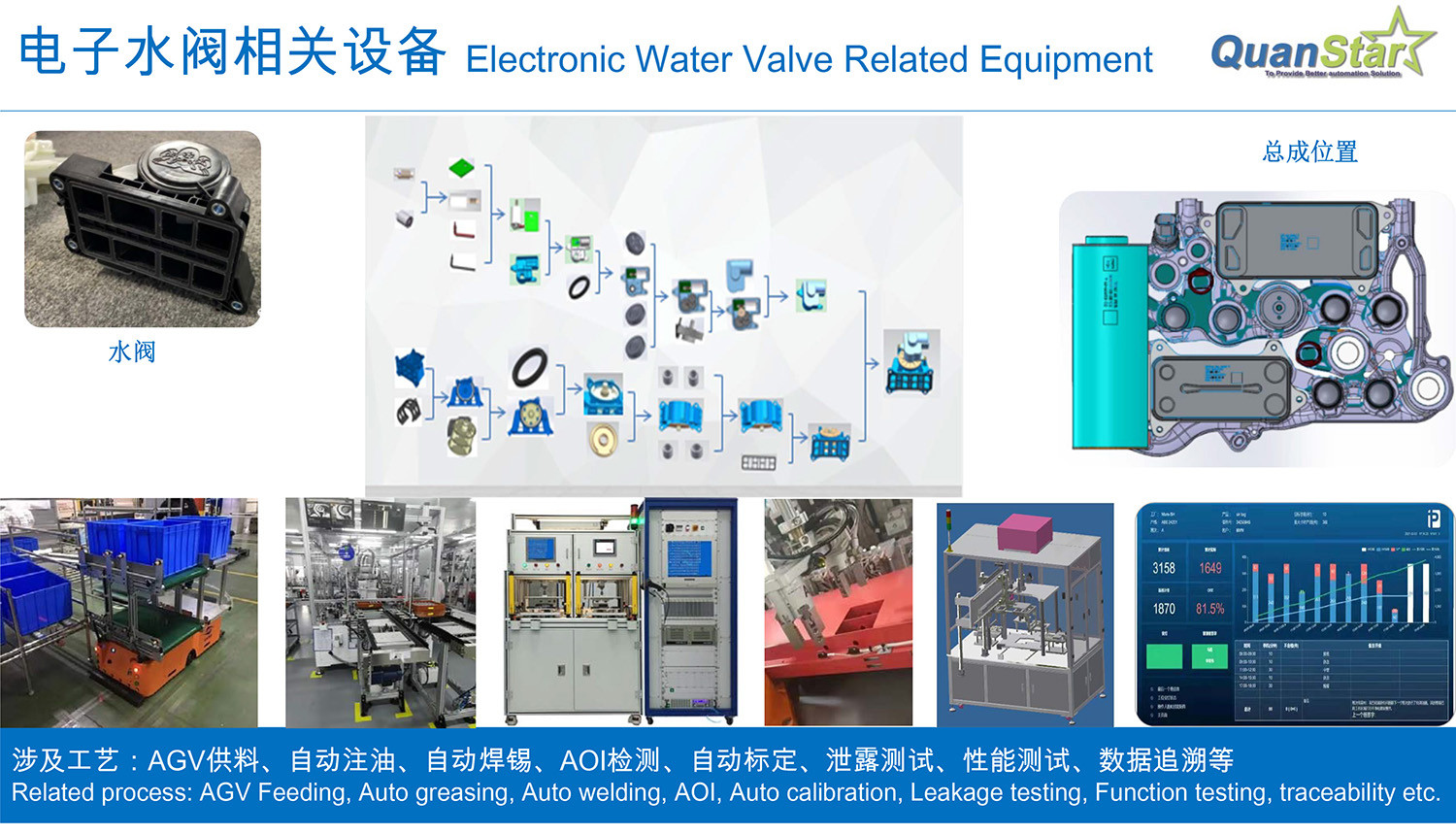

The design of the assembly line for electric vehicle electronic water valve focuses on flexibility and high efficiency.

Feeding: Set up sensors and visual recognition systems at the feeding position to quickly identify and classify parts to ensure the accuracy of parts by identifying the QR code or specific mark of parts, automatically distribute valve bodies, valve cores and other parts of different specifications to the corresponding assembly stations.
Assembly system: Multiple high-precision manipulators work together to complete the assembly task of electronic water valves. The manipulator is equipped with special fixtures and can accurately grab and install various parts. At key assembly stations, such as the assembly place of the valve core and the valve body, force sensors and displacement sensors are set up to monitor the pressure and position during the assembly process in real time to ensure assembly accuracy. At the same time, advanced processes such as laser welding are adopted to ensure that the connections between parts are firm and reliable. For example, during the welding process of the valve core and the valve body, the welding parameters are precisely controlled to ensure the weld quality and sealing performance.
Detection system: Equipped with a variety of detection equipment to conduct comprehensive performance detection on electronic water valves. Including pressure testing equipment to simulate the performance of electronic water valves under different working pressures; flow testing equipment to detect the flow control accuracy of water valves; sealing testing equipment to ensure that the water valve has no leakage under different pressures. In addition, an electrical performance detection station is also set up to detect whether the control circuit of the electronic water valve is working normally. The detection data is automatically uploaded to the production management system for quality tracing and analysis.
Control system: PLC control system. Operators can monitor the running status of the production line, adjust parameters and handle alarm information in real time through the touch screen human-machine interface. The control system also has an intelligent fault diagnosis function, which can quickly locate and eliminate faults and improve the reliability and stability of the production line.

Automotive automation solution

● Power system assembly automation solution

● Chassis system assembly automation solution

● Automotive electronics assembly automation solution

● Body and interior assembly solution

Quanstar Intelligent Controls (Shanghai) Co.,Ltd manufactures high-end equipment in the field of assembly automation. We specialize in the design and producing of customer-specific precision assembly and test automation machine such as automated stations and single piece workcells, providing customers with software and hardware integrated development solutions. We offer our solutions and equipment for various industries: automotive (including e-mobility), medical device, cosmetics, home applicance and others.

Quanstar Intelligent Controls (Shanghai) Co.,Ltd is a team consisted of over 200 specialists, including designers, programmers, mechanical engineers and knowledgeable specialists bring from decades of expericence in a variety of industries. We have our own R&D center which was awarded as the National Business Technology Center by the Council of Ecomonic and Technological Development for Shanghai in 2022.

Quanstar Intelligent Controls (Shanghai) Co.,Ltd passed ISO 9001:2015 quality system certification from SGS. Our assembly and technological lines have been supplied to leading manufacturers in China and exported to many countries including USA, Mexico, France, Germany, Italy, Netherlands, Poland and so on. We work with customers to meet all requirements and expectations including CE, UL, NR12, ART and so on.

Quanstar Intelligent Controls (Shanghai) Co.,Ltd is committed to creating value for our customers by providing the best assembly automation solutions and value added engineering services. Our inventments in new technology, global service sites and overseas processing plants will be continued to achieve win-win objectives and prove exemplary levels of service.
